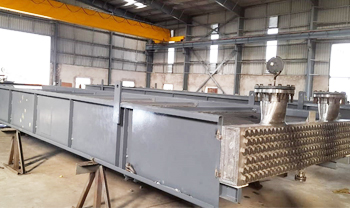

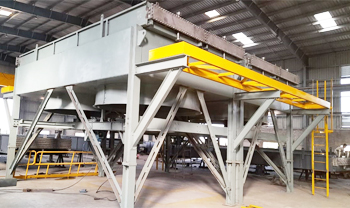

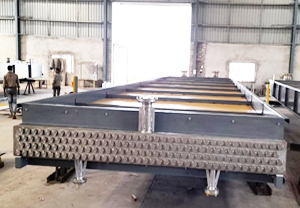

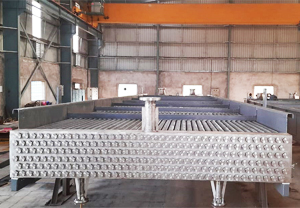

Air Cooled Heat Exchanger
Air cooled heat exchangers are pressure vessels which cools a circulating fluid within finned tubes by forcing ambient air over the periphery of the tubes.
Air cooled heat exchangers are commonly used in industrial application. Air cooled heat exchangers are used where a reliable source of water is not available as a cooling medium.
Nu-way provides both Forced and Induced draft air cooled heat exchangers with Plug type and Cover type headers.
Design and Fabrication code: API 661 2006 edition & ASME SEC VIII. DIV.1 2010 EDITION + 2011 ADDENDA.
We offer below fin tube configuration
L, and LL fins - up to 160 deg C
KL fins - up to 160 deg C
Extruded fins - up to 280 deg C
G type grooved /embedded - up to 400 deg C
